Button Based

Product Code : SCL-EI-10616

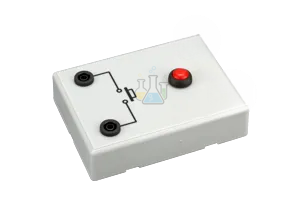

The Push Button Switch Module from Lab Glassware Manufacturer is a button-based electrical control component used for making and breaking simple circuits in school electronics, physics demonstrations, and STEM project kits.

Quick answer: The Push Button Switch Module is a simple press-to-operate switch used to teach open circuit, closed circuit, continuity, and momentary switching in school and college electronics labs. It works with low-voltage LEDs, bulbs, buzzers, and small motors, making it a practical, affordable addition to STEM circuit-building kits under teacher supervision.

Key Features

• Button-based switch for practical school electronics and circuit demonstrations.
• Useful for teaching open circuit, closed circuit, continuity, and momentary switching.
• Can be used with low-voltage LEDs, bulbs, buzzers, motors, and simple project models.
• Easy press operation supports quick student understanding during lab activities.
• Suitable for physics labs, electronics labs, STEM classrooms, and science kits.
• Compact design allows use on demonstration boards, project panels, and training circuits.

Applications / Uses

• School physics experiments on simple electric circuits.
• Electronics training for switching and continuity demonstrations.
• STEM kits involving LEDs, buzzers, motors, and lamps.
• Working models that need manual start, stop, or trigger control.
• Project-based learning for basic electrical control systems.

How to Use the Push Button Switch Module

1. Check the confirmed voltage and current rating before connecting the switch.
2. Place the switch module on a dry, stable, non-conductive surface.
3. Connect one terminal to the power source or circuit input.
4. Connect the second terminal to the load, such as an LED, buzzer, lamp, or motor.
5. Press the button to complete the circuit and observe the load operation.
6. Release the button and observe whether the circuit opens, depending on the switch type.

Safety note: Use the Push Button Switch Module only within its confirmed rating. Do not connect it directly to mains electricity unless the complete circuit is designed and verified by a qualified instructor or technician.

Care & Maintenance

• Keep the switch dry and free from dust, moisture, and chemical vapours.
• Do not overload the contacts beyond the confirmed current rating.
• Check terminals regularly for loose wires or damaged insulation.
• Replace the switch if the button sticks, terminals loosen, or the housing cracks.

Building a Complete Circuit Demonstration Set

The Push Button Switch Module pairs well with other basic circuit-teaching components. For a broader switching comparison, schools often add Switches Based On alongside this push-button module. To power the demonstration circuit, an Incandescent Bulb or a Neon Lamp Festoon makes a visible load, and a set of Test Leads (4mm, Set of Ten) completes the wiring for a safe, classroom-ready electrical control bench.

Frequently Asked Questions

What is a Push Button Switch Module used for?
A Push Button Switch Module is used to make or break an electrical circuit by pressing a button. It is commonly used in school physics experiments, electronics kits, STEM models, and simple control circuits.

Is this switch suitable for school students?
Yes. It is suitable for supervised school and STEM use when operated with the correct low-voltage power supply and properly insulated circuit connections.

Is the button momentary or latching?
A momentary switch works only while pressed, while a latching switch stays on or off after pressing.

Can it be used with bulbs, LEDs, buzzers, and motors?
Yes, it can be used with compatible low-voltage loads such as bulbs, LEDs, buzzers, and small motors. The load must not exceed the confirmed switch rating.

Does the product include wires or connectors?
The standard listing should be treated as the switch module only unless accessories are specifically mentioned. Wires, connectors, and base plates should be listed separately if supplied.

Related Products

• Switches Based On
• Incandescent Bulb
• Test Leads (4mm, Set of Ten)

Request a Quote

For pricing, bulk school and institutional orders, or tender submissions for the Push Button Switch Module, please contact us or visit our lab tender page.
