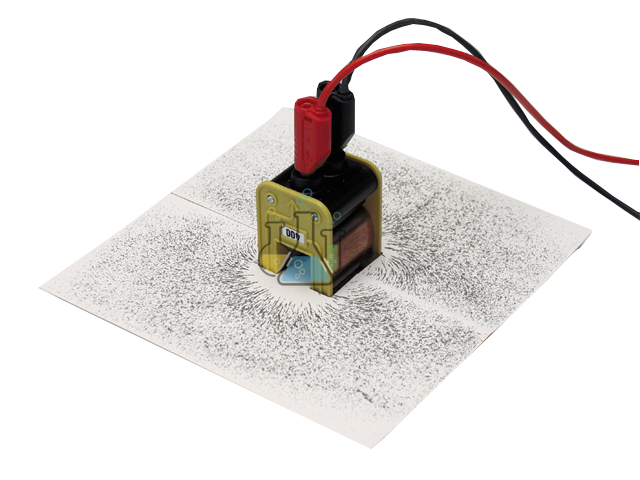

Magnetic Field Board for Student Transformer

Product Code : SCL-EI-10581

Lab Glassware Manufacturer, based in Ambala, Haryana, India, has been manufacturing and exporting laboratory, scientific, and educational equipment since 1982. The Magnetic Field Board for Student Transformer is a school physics accessory used for visualizing magnetic-field lines around transformer coils with iron powder. Lab Glassware Manufacturer supplies this board to institutions across the Horn of Africa, including Ethiopia, Kenya, Somalia and Djibouti.

Quick Answer: The Magnetic Field Board for Student Transformer is a two-part board that makes invisible magnetic-field lines around transformer coils visible by sprinkling iron powder on its surface, helping students observe field patterns before moving to quantitative coil and galvanometer measurements.

Specification	Detail
Product Name	Magnetic Field Board for Student Construction Transformer
Brand	Lab Glassware Manufacturer
Category	Electronic Instruments – Electromagnetism and Transformer Accessory
Intended Users	School physics students, science teachers, STEM labs and electromagnetism practical groups
Board Construction	Two-part board
Application	Displaying coil magnetic fields using iron powder
Dimensions	Approx. 200 x 200 mm
Required Accessory	Iron powder, 250 g — check whether included in your final supply before ordering
Standards / Certifications	No product-specific certification confirmed; verify tender compliance before procurement

Key Features

Two-part magnetic-field board for student construction transformer experiments
Used to demonstrate magnetic-field lines of coils with iron powder
Approximate 200 x 200 mm board size for classroom handling
Helps students see magnetic-field distribution instead of relying only on diagrams
Suitable for transformer, induction, electromagnetism and coil-field demonstrations
Simple visual apparatus for teacher-led and student practical activities

What's Included

Two-part magnetic-field board
Operating instructions or transformer experiment guide
Iron powder, 250 g (required accessory — confirm inclusion in your order)

Student construction transformer coils are not included unless specified separately.

Applications

The Magnetic Field Board for Student Transformer is used for visualizing magnetic-field lines around transformer coils, demonstrating how iron powder aligns in a magnetic field, teaching magnetic flux patterns in student transformer experiments, supporting lessons on electromagnetism, induction and transformer principles, comparing magnetic-field patterns for different coil arrangements, helping students connect field-line diagrams with real observations, and using as an accessory with school transformer and coil experiment sets.

How to Use the Magnetic Field Board for Student Construction Transformer

Place the magnetic field board on a stable, level laboratory table, position the student transformer coil or coil arrangement as directed by the teacher, sprinkle a small, even layer of iron powder on the board surface, energize the coil only under teacher supervision using the correct low-voltage setup, gently tap the board so the iron particles align with the magnetic-field pattern, observe, sketch and compare the visible field-line arrangement, and switch off power before changing coil position or cleaning the board.

Safety Note: Use the board under teacher supervision. Keep iron powder away from eyes, magnets, electronic devices and open electrical contacts. Do not energize coils continuously if they become warm.

Care & Maintenance

Remove iron powder carefully after each experiment and store it in a sealed container, keep the board dry, flat and free from scratches, do not use wet or contaminated iron powder on the board surface, and store the board separately from loose magnets and heavy apparatus.

Pairs Well With Other Transformer and Electromagnetism Apparatus

Schools building a full electromagnetic induction teaching module often pair this board with the Galvanometer Attachment for Student Transformer for measuring induced current, the Student Built Transformer Basic Set to construct the transformer itself, and the Coil with 400 Turns as a compatible induction coil.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer has been manufacturing and exporting laboratory, scientific and educational equipment from Ambala, Haryana, India since 1982, supplying schools, colleges, research institutes and government tenders across India and export markets including the Horn of Africa (Ethiopia, Kenya, Somalia, Djibouti). Every accessory is checked before dispatch, and technical support is available for institutional buyers placing bulk or tender orders.

Frequently Asked Questions

What is a Magnetic Field Board for Student Transformer used for?
It is used to show the magnetic-field pattern around student transformer coils by making iron powder align with the field lines.

Does the board include iron powder?
The verified source lists iron powder 250 g as a required accessory. Whether it is included in the final supply should be confirmed before order placement.

What is the size of the magnetic field board?
The verified source lists approximate dimensions of 200 x 200 mm.

Can this board be used in school physics labs?
Yes. It is suitable for teacher-guided school physics experiments on coils, magnetic fields, electromagnetism and student transformers.

Why is iron powder used with the board?
Iron powder makes magnetic-field patterns visible because the particles align along the magnetic-field regions produced by the coil.

Are certifications confirmed for this product?
No product-specific certification is confirmed in the verified source data. Tender compliance, material details and safety declarations should be checked before order placement.
