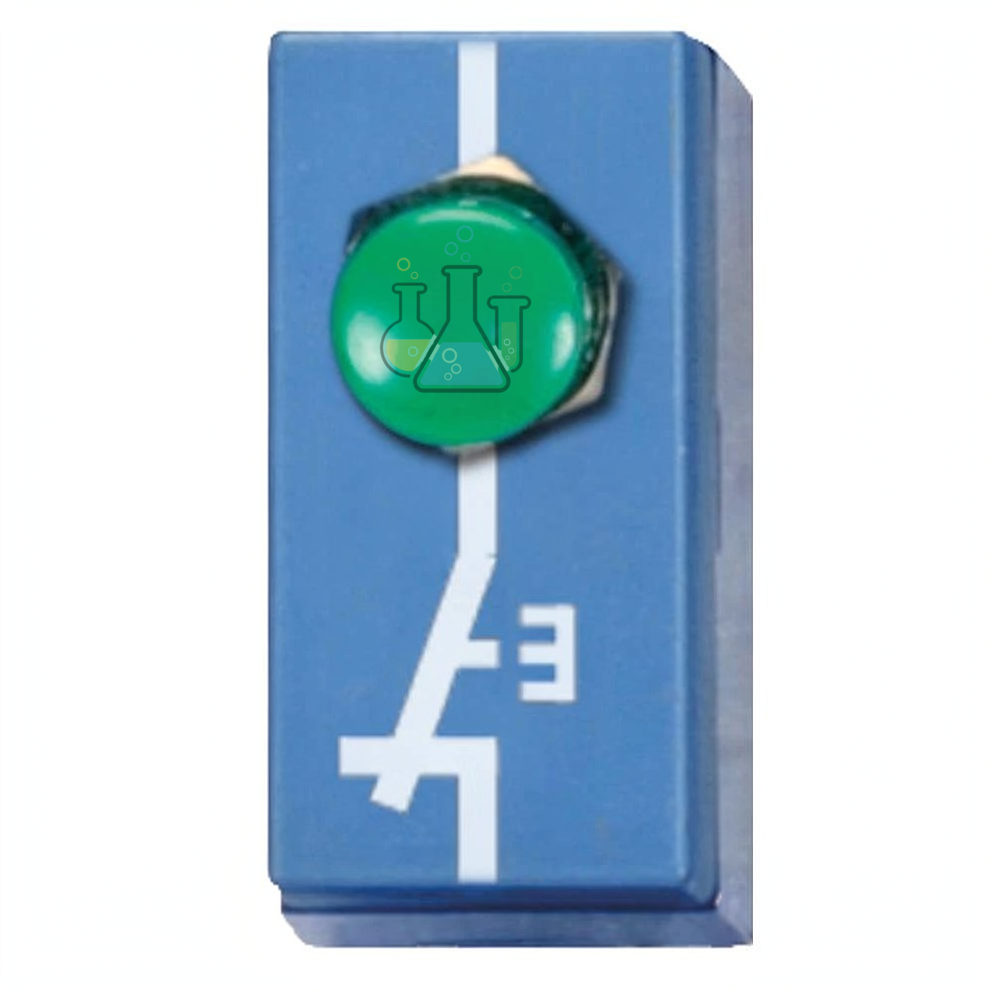

Push Button Plug Element

Product Code : SCL-EI-10654

The Push Button Plug Element from Lab Glassware Manufacturer is an electrical circuit component used for momentary switching, circuit opening, and contact-control demonstrations in school physics and electronics laboratories.

Quick answer: The Push Button Plug Element is a modular plug-in component that lets students control current flow in a low-voltage circuit by pressing a button, used to teach open circuits, closed circuits, momentary switching, and continuity. The exact contact logic (normally open or normally closed), voltage rating, and current rating vary by model — check the specific listing before ordering.

Technical Specifications

Specification	Detail
Product Name	Push Button Plug Element
Brand	Lab Glassware Manufacturer
Product Category	Physics Lab Equipment / Electronic Instruments / Electrical Circuit Apparatus
Switch Type	Push button plug element

Plug element format for compatible modular circuit boards, with fitment confirmed at order stage.
Educational electronics use in low-voltage physics and electronics practicals.
Momentary operation for showing temporary circuit interruption or switching.
Classroom-friendly handling for repeated supervised student experiments.
Specification-dependent safety — rating, insulation, plug type, and terminal design are confirmed at order stage.

What Is Included

Push Button Plug Element with label and plug base. An instruction sheet, storage box, or certificate may be included depending on the configuration ordered — confirm exact contents with Lab Glassware Manufacturer before ordering.

Applications / Uses

Demonstrating open and closed circuits in school physics labs
Momentary switching of lamps, buzzers, and simple loads
Teaching current flow, continuity, and circuit interruption
Using with modular plug-in electronics trainer boards
Building low-voltage STEM and electronics experiments
Supporting practical lessons on switches and control circuits

How to Use the Push Button Plug Element

Confirm the contact function, voltage rating, current rating, and compatible circuit board before use.
Inspect the push button, plug contacts, housing, and label for damage.
Insert the plug element into the compatible circuit board or trainer panel.
Connect it in series with a low-voltage load such as a lamp, buzzer, or meter circuit.
Press the button and observe whether the circuit opens or closes according to its confirmed contact type.
Release the button and record how the circuit returns to its normal state.
Disconnect the power supply before removing or changing the circuit layout.

Safety note: Use only in low-voltage educational circuits unless the product is specifically rated otherwise. Do not connect to mains electricity, overload the contacts, or use damaged plug elements with exposed conductors.

Care & Maintenance

Store the plug element dry and protected from dust and impact.
Keep plug contacts clean for reliable circuit connection.
Do not force the element into an incompatible trainer board.
Remove from use if the button sticks, contacts loosen, or insulation cracks.

Push Button vs Lever Switch Plug Elements

Lab Glassware Manufacturer offers more than one plug-in switching element, and the choice depends on the type of switching action the lesson requires. The Push Button Plug Element is a momentary component: the circuit changes state only while the button is pressed and returns to its normal state when released, which is useful for teaching momentary switching and pulse-style control. The Plug-in Element Lever Switch and the Single-Pole Lever Switch are maintained-contact components: once toggled, they hold their new state until switched back, which better suits lessons on sustained circuit control. Both switch types plug into the same plug-in board for building components system.

Frequently Asked Questions

What is a Push Button Plug Element used for?
A Push Button Plug Element is used to control low-voltage circuits by opening, closing, or momentarily switching a circuit during electronics experiments.

Is it normally open or normally closed?
The normal contact state varies by unit — check normally open or normally closed from the product label or datasheet before ordering.

Can it be used with school circuit boards?
Yes, it can be used with school circuit boards if the plug standard and spacing match the board system.

What voltage rating does it support?
The voltage and current ratings varies by unit — check ratings from the product specification before ordering.

Is it suitable for school physics labs?
Yes. It is suitable for supervised low-voltage physics and electronics practicals when used with compatible trainer boards and safe power supplies.
