Microscope Camera Kit

Product Code : SCL-MI-10763

The Microscope Camera Kit Stellar 4 MP WiFi 400x LED is a digital microscopy teaching kit used for live specimen viewing, WiFi image sharing and classroom biology documentation. It is designed for schools, colleges, STEM classrooms and biology laboratories that need 40x, 100x and 400x magnification with a 4 MP WiFi camera.

Product Description

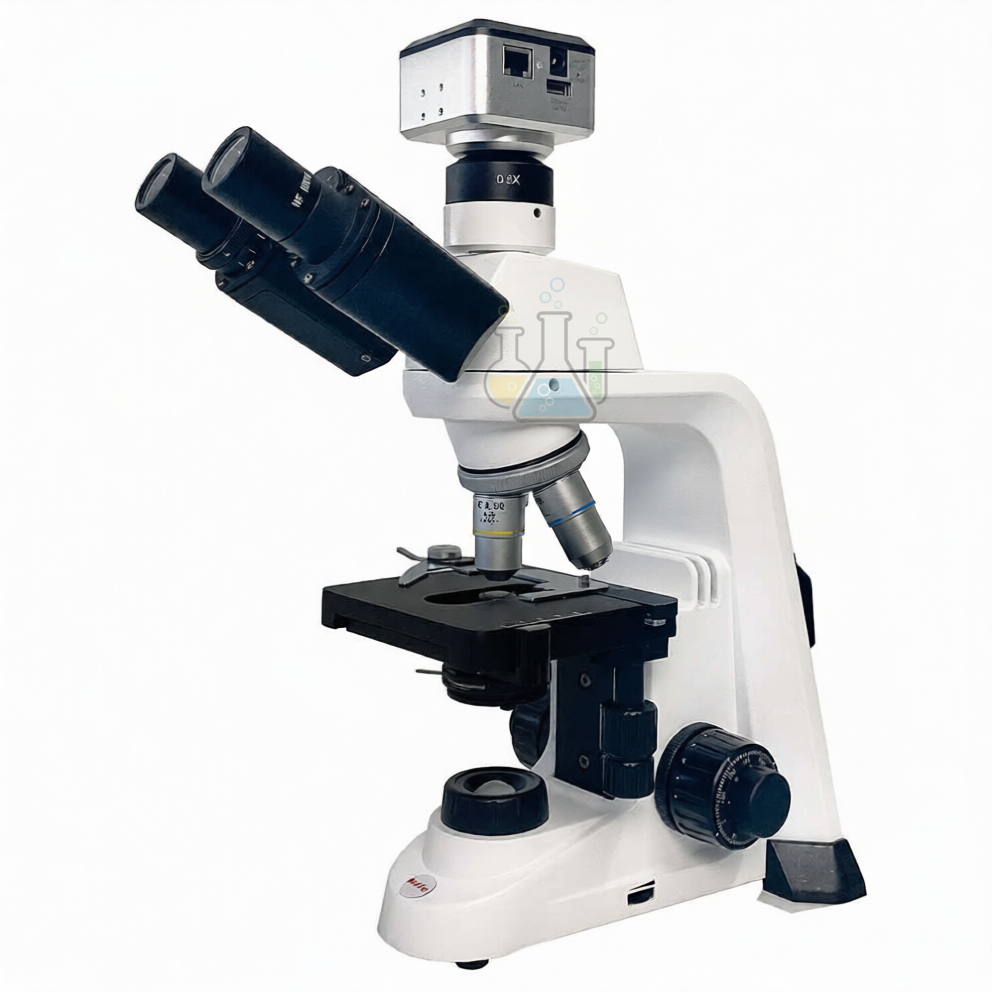

The Microscope Camera Kit Stellar 4 MP WiFi 400x LED combines a Stellar trinocular microscope with a Moticam X5 Plus 4 MP WiFi camera. The microscope supports practical slide observation, while the camera enables digital viewing on compatible devices for teacher-led demonstrations and student records.

The kit is suitable for introductory and intermediate microscopy lessons. It includes a C-mount adapter for mounting the camera, a stable microscope frame, adjustable LED illumination and optical features designed for classroom learning. It belongs in the Microscope Instrument category and supports wider science teaching workflows from General Lab Equipment.

Key Features

• 400x classroom magnification: Provides 40x, 100x and 400x magnification for biological slide observation.
• 4 MP WiFi camera: Uses a Moticam X5 Plus WiFi camera for digital image sharing and documentation.
• Trinocular microscope design: Allows camera mounting while supporting optical viewing.
• LED illumination: Includes 1 W adjustable LED lighting for transmitted-light microscopy.
• C-mount camera setup: Supplied with a C-mount adapter for fitting the camera to the microscope.
• Student-friendly focusing aids: Colour-coded condenser/iris guidance and focusing aids support microscopy learning.
• Capacity by magnification: Capacity is defined as 400x maximum magnification, not liquid volume.

Technical Specifications

What's Included in the Kit

• 1 Stellar trinocular microscope
• 1 Moticam X5 Plus 4 MP WiFi camera
• 0.5x C-mount adapter
• USB-C type power supply
• Dust cover
• Focusable 12 mm macro lens
• CS ring adapter
• 2 eyepiece adapters, 30 mm and 38 mm
• Calibration scale
• Motic Images Plus 3.0 software for PC / OSX / Linux

Applications / Uses

• Teaching basic and intermediate biological microscopy in school laboratories.
• Viewing prepared slides at 40x, 100x and 400x magnification.
• Sharing live microscope images through WiFi for classroom demonstrations.
• Capturing specimen images for digital practical records and reports.
• Supporting specimen preparation with Laboratory Glassware.
• Using alongside classroom devices from Electronic Instruments.

How to Use the Microscope Camera Kit Stellar 4 MP WiFi 400x LED

1. Place the microscope on a stable, dry and level laboratory bench.
2. Connect the USB-C power supply or approved power source.
3. Place the prepared slide on the mechanical stage and secure it with the holder.
4. Start with the 4x objective, then focus using coarse and fine adjustment.
5. Increase magnification to 10x or 40x only after centring the specimen.
6. Switch on the Moticam X5 Plus and connect through WiFi or Ethernet as required.
7. Use Motic Images Plus software to view, capture, measure or save microscope images.

Safety note: Keep liquids away from the camera, power supply and microscope stand. Handle slides carefully, use the 40x spring-loaded objective gently, and avoid forcing the mechanical stage or camera adapter.

Care & Maintenance

• Clean eyepieces, objectives and camera optics only with approved lens tissue.
• Cover the microscope with the dust cover after each use.
• Keep the camera, adapters, calibration scale and software accessories together.
• Store the microscope in a dry cabinet away from dust, moisture and corrosive vapours.

Frequently Asked Questions

What is the Microscope Camera Kit Stellar 4 MP WiFi 400x LED used for?

It is used for biological slide observation, WiFi microscope image sharing, classroom demonstrations and digital practical documentation.

What magnification does this microscope kit provide?

The kit provides 40x, 100x and 400x magnification using a 10x eyepiece with 4x, 10x and 40x objectives.

Does the kit include a WiFi camera?

Yes. The listed configuration includes a Moticam X5 Plus 4 MP WiFi camera with WiFi and Ethernet live display support.

Is the microscope suitable for school biology labs?

Yes. It is suitable for school and college biology laboratories where teachers need optical microscopy and digital image sharing.

Can students view microscope images on devices?

Yes, when the camera is connected correctly through WiFi, Ethernet or supported software, students can view live microscope images on compatible devices.

Last updated: September 2026.
