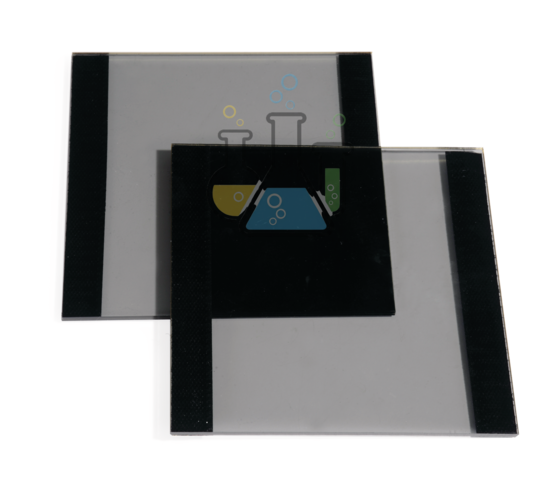

Accessories for photoelasticity Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-10515

The accessories for photoelasticity set is a physics and engineering laboratory accessory kit used for supporting photoelastic stress-analysis experiments with compatible polariscopes, transparent models, loading fixtures, and optical components. It is suitable for schools, colleges, universities, STEM laboratories, and engineering mechanics labs studying stress distribution.

Product Description

The Accessories for Photoelasticity set from Lab Glassware Manufacturer is intended for use with compatible photoelasticity apparatus or transmission polariscope systems. These accessories help students observe stress patterns, fringe formation, and load effects in transparent photoelastic models under controlled mechanical loading.

This product should be described as an accessory or replacement set, not as a complete photoelasticity apparatus unless the final supplied configuration confirms the light source, polarizer, analyzer, loading frame, specimens, and optical mounts. Final component list, model compatibility, material, specimen size, and optical accessory details must be confirmed before publication or tender submission.

Key Features

• Accessory set for compatible photoelasticity and stress-analysis apparatus.
• Useful for demonstrating stress distribution, birefringence, and fringe patterns.
• Supports experiments with transparent photoelastic models under applied load.
• Suitable for physics, engineering mechanics, STEM, and materials laboratories.
• Can support replacement, maintenance, or expansion of existing photoelasticity setups.
• Helps students connect visual fringe patterns with mechanical stress concentration.
• Component list, compatibility, model capacity, and optical parts must be confirmed.

Technical Specifications

What's Included in the Kit

• Photoelasticity accessory set
• Transparent photoelastic models or specimen blanks
• Loading pins, screws, clamps, or model holders
• Polarizer, analyzer, optical film, or quarter-wave plate accessories
• Storage box, labelled packet, or spare-parts tray
• Experiment guide or compatibility note

Applications / Uses

• Demonstrating stress distribution in transparent photoelastic models.
• Studying fringe patterns caused by loading, bending, compression, or tension.
• Explaining stress concentration around holes, notches, beams, and model shapes.
• Supporting engineering mechanics lessons on principal stress and strain visualization.
• Using with compatible products from Physics Lab Equipment.
• Supplying laboratory accessories through General Lab Equipment.
• Confirming bulk or OEM supply through Tenders/OEM.
• Checking component compatibility before ordering through Contact Us.

How to Use the Accessories for Photoelasticity

1. Confirm that the accessories match the photoelasticity apparatus or polariscope model.
2. Inspect transparent models, optical films, holders, clamps, and loading parts before use.
3. Mount the selected photoelastic model in the compatible loading frame.
4. Align the polarizer, analyzer, light source, and specimen path as instructed.
5. Apply load gradually using the confirmed fixture or loading mechanism.
6. Observe the fringe pattern and record changes as load or model position changes.
7. Compare fringe concentration at high-stress regions such as holes, corners, and notches.
8. Remove the load fully before changing specimens, clamps, or optical accessories.

Safety note: Do not overload transparent models or force optical parts into incompatible holders. Keep fingers clear of clamps, load frames, and moving fixtures during stress demonstrations.

Care & Maintenance

• Store optical films, models, and polarizing parts in dust-free protective packing.
• Clean transparent models with a soft cloth to avoid scratches that affect fringe visibility.
• Keep screws, pins, clamps, and holders labelled for quick classroom setup.
• Replace cracked, scratched, warped, or permanently stressed models before practical use.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational and institutional buyers. The brand supports schools, colleges, universities, distributors, and export customers with physics, engineering, and general laboratory products. This photoelasticity accessory set can be supplied for stress-analysis teaching when final components and compatibility are verified. Buyers should confirm the exact accessory list, apparatus model, specimen material, and loading range before procurement.

Frequently Asked Questions

What are accessories for photoelasticity used for?

Accessories for photoelasticity are used to support stress-analysis experiments with transparent models, optical elements, loading fixtures, and compatible polariscope apparatus.

Is this a complete photoelasticity apparatus?

Not necessarily. This product should be treated as an accessory set unless the quotation confirms a complete apparatus with light source, polarizer, analyzer, loading frame, and specimens.

What concepts can students learn with photoelasticity accessories?

Students can learn stress distribution, birefringence, fringe formation, stress concentration, principal stress direction, and load effects in transparent models.

Are transparent models included?

Transparent models may be included only if confirmed in the final supply. The exact model shapes, material, size, and quantity must be verified.

Can these accessories be used with any polariscope?

No. Compatibility must be confirmed. Check specimen size, mounting method, optical path, loading frame, polarizer size, and apparatus model before ordering.

What should be confirmed before ordering?

Confirm the complete component list, compatible apparatus model, specimen material, model dimensions, loading range, optical accessories, packing, and instruction guide availability.
