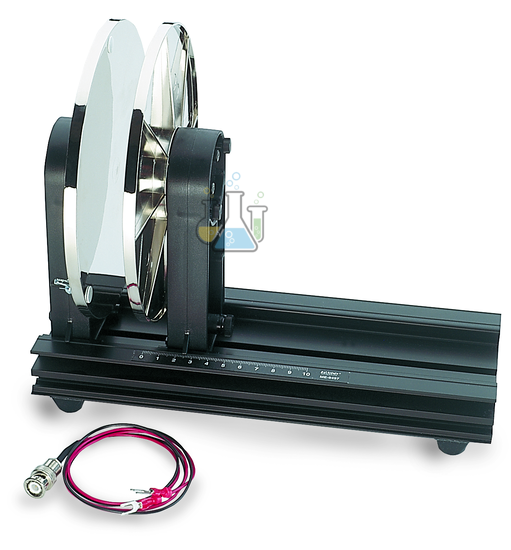

Parallel Plate Capacitor Manufacturer,Supplier and Exporter in India

Product Code : SCL-EI-10708

The adjustable plate capacitor is a physics laboratory apparatus used for demonstrating capacitance, plate separation, dielectric effect, charge storage, and voltage relationship in school and college laboratories. It helps students observe how changing the distance between two conductive plates affects capacitance in a controlled classroom experiment.

Product Description

The Adjustable Plate Capacitor from Lab Glassware Manufacturer is designed for electricity and electrostatics practicals where students need to study a variable parallel-plate capacitor. It supports demonstrations involving plate area, spacing, dielectric insertion, stored charge, potential difference, and the basic construction of capacitors.

This product belongs to the physics lab equipment category and is intended for supervised educational use. Plate diameter, plate material, separation range, scale reading, capacitance range, terminal type, dielectric accessories, and mounting design must be confirmed before final quotation because adjustable capacitor models vary by experiment requirement.

Key Features

• Adjustable plate spacing: Allows students to vary the distance between capacitor plates during experiments.
• Capacitance demonstration aid: Helps show how plate separation and dielectric material affect capacitance.
• Parallel-plate design: Supports direct teaching of a standard capacitor model used in physics theory.
• Compatible with instruments: Can be used with suitable meters, voltage sources, and electronic instruments where rated.
• Useful for electrostatics lessons: Supports topics on charge storage, potential difference, and electric fields.
• Reusable lab apparatus: Suitable for repeated school and college practical sessions when handled correctly.
• Safety-focused use: Intended for supervised low-voltage educational experiments only.

Technical Specifications

What's Included in the Kit

• 1 × Adjustable plate capacitor main unit
• Pair of conductive plates
• Adjustable spacing mechanism or scale
• Terminals, leads, or connector sockets
• Dielectric sheets or sample plates
• Instruction sheet or experiment guide

Applications / Uses

• Demonstrating how capacitance changes with plate separation.
• Studying the effect of dielectric materials between capacitor plates.
• Showing the relationship between charge, voltage, and capacitance.
• Supporting experiments on electric field between parallel plates.
• Using with compatible meters, voltage sources, and general lab equipment.
• Teaching electrostatics and basic electronics in physics laboratories.

How to Use the Adjustable Plate Capacitor

1. Place the capacitor on a clean, dry, stable laboratory bench.
2. Check the plates, spacing mechanism, terminals, and leads before use.
3. Set the initial plate spacing according to the experiment guide.
4. Connect the apparatus only to an approved low-voltage supply or capacitance meter.
5. Change the plate separation gradually and record the measured capacitance or voltage response.
6. Insert a dielectric sheet if supplied, then compare the reading with the air-gap result.
7. Switch off and discharge the capacitor safely before changing connections or handling the plates.

Safety note: Do not connect the adjustable plate capacitor directly to mains electricity. Discharge the plates after use, avoid touching charged terminals, and use suitable safety protective wears during broader electrical demonstrations.

Care & Maintenance

• Keep the capacitor plates clean, dry, and free from dust or fingerprints.
• Do not scratch, bend, or dent the plates, as this can affect alignment.
• Store dielectric sheets flat and away from moisture.
• Replace damaged terminals, leads, or adjustment parts before reuse.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer lists Physics Lab Equipment, Electronic Instruments, Safety Protective Wears, and General Lab Equipment among its product categories, with works located at Ambala Cantt, Haryana, India. The company supplies laboratory glassware, scientific instruments, classroom kits, and physics teaching apparatus for educational and laboratory procurement requirements.

Frequently Asked Questions

What is an adjustable plate capacitor used for?

An adjustable plate capacitor is used to demonstrate how capacitance changes with plate separation, dielectric material, plate area, charge, and voltage.

Is this apparatus suitable for school physics labs?

Yes. It is suitable for supervised school and college physics laboratories when used with compatible low-voltage equipment.

Does the capacitor include dielectric sheets?

The supplied data does not confirm dielectric sheets. Confirm whether dielectric samples are included before ordering.

What should be confirmed before quotation?

Confirm plate diameter, plate material, separation range, capacitance range, terminals, dielectric accessories, and instruction manual availability.

Can students connect it to a power supply?

Students should connect it only under teacher supervision using an approved low-voltage supply or capacitance meter.

Does the capacitor require calibration?

Calibration depends on the supplied model and intended measurement use. Confirm whether calibrated readings or certificates are required for tender documentation.

Request the Adjustable Plate Capacitor for your electrostatics practical setup, or explore more physics lab equipment for complete school laboratory supply.
