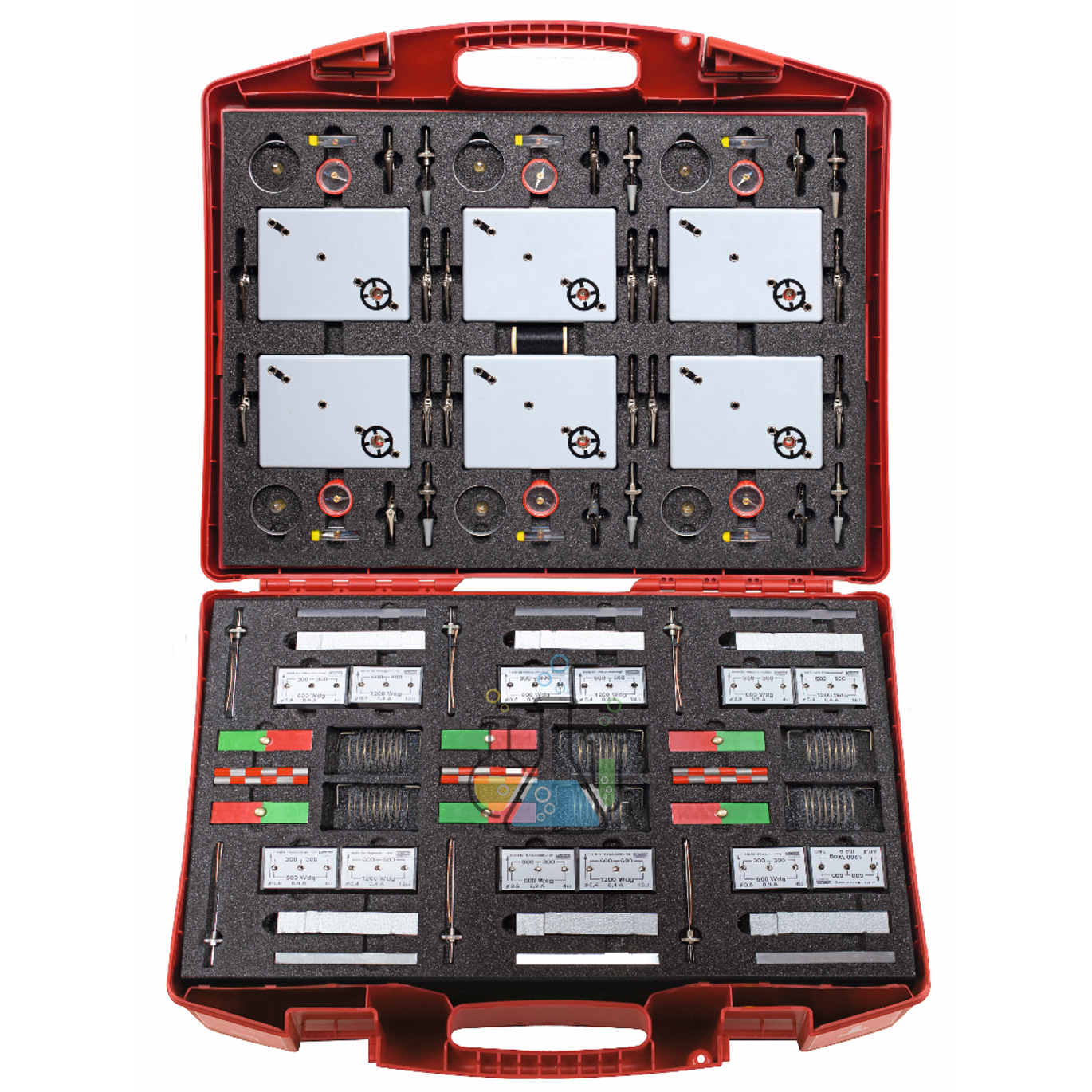

Class Set Electricity 2.0 Induction & Alternating Current kit

Product Code : SCL-EI-10582

Lab Glassware Manufacturer, based in Ambala, Haryana, India, has been manufacturing and exporting laboratory, scientific, and educational equipment since 1982. The Class Set Electricity 2.0 Induction & Alternating Current Kit is a school physics apparatus used for teaching electromagnetic induction, coil magnetic fields, alternating current, generators, transformers, Lenz’s law, self-induction and impedance across six learning groups. Lab Glassware Manufacturer supplies this kit to institutions across Central America, including Guatemala, Honduras, El Salvador and Costa Rica.

Quick Answer: The Class Set Electricity 2.0 Induction & Alternating Current Kit equips six secondary-school learning groups (grade 9 onward) with coils, U-cores, magnets and compasses to investigate electromagnetic induction, build an AC generator model, explain transformer operation, and demonstrate Lenz’s law and self-induction.

Key Features

• Class set for 6 learning groups working at the same time
• Covers induction, alternating current, generators and transformers
• Includes coils with 600 turns and 1200 turns for transformer and induction activities
• Magnets, flat magnets and compasses support magnetic-field investigations
• U-cores, retaining brackets and short-circuit rings support transformer experiments
• Suitable for curriculum topics from grade 9 onward
• Supports advanced topics including Lenz's law, self-induction and impedance

What's Included in the Kit

• 18 magnets
• 6 flat magnets
• 6 compasses
• 6 needle holders
• 1 roll of thread
• 6 clamps
• 6 U-cores
• 6 retaining brackets
• 6 short-circuit rings
• 6 coils with 1200 turns
• 6 coils with 600 turns
• 6 sheet-metal strips
• 6 test sections
• Copper wire
• Teacher handout with worksheets

Applications

The Class Set Electricity 2.0 Induction & Alternating Current Kit is used for demonstrating the Ørsted experiment with current and magnetism, studying magnetic fields around current-carrying conductors and coils, investigating induction voltage in coils, building and explaining an alternating-current generator model, teaching transformer operation using coils and U-cores, demonstrating Lenz's law and opposing induced effects, introducing self-induction during switching processes, and explaining impedance in alternating-current circuits.

How to Use the Class Set Electricity 2.0 Induction & Alternating Current

Divide the class into six learning groups, select the experiment topic such as coil magnetic field, induction, generator or transformer, place the required coils, magnets, U-cores, compasses and accessories on a dry bench, assemble the apparatus according to the worksheet or teacher handout, connect the approved low-voltage AC/DC power supply where required, observe field direction, induced current, AC behaviour or transformer response, and record observations and disconnect the power supply before changing connections.

Safety Note: Use the kit only under teacher supervision. Work with low voltage, avoid short circuits, and disconnect power before moving coils, cores, magnets or conductors.

Care & Maintenance

Store coils, magnets and U-cores in assigned compartments after each lesson, keep copper wire, compasses and needle holders dry and free from corrosion, inspect coils, brackets and electrical contacts before every practical session, and keep magnets away from electronic storage media and sensitive instruments.

Pairs Well With Other Transformer and Electromagnetism Apparatus

Schools building a full electromagnetic induction teaching module often pair this class set with the Galvanometer Attachment for Student Transformer for visible induced-current indication, the Magnetic Field Board for Student Transformer to visualize coil magnetic fields, and the Student Built Transformer Basic Set for single-group transformer construction.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer has been manufacturing and exporting laboratory, scientific and educational equipment from Ambala, Haryana, India since 1982, supplying schools, colleges, research institutes and government tenders across India and export markets including Central America (Guatemala, Honduras, El Salvador, Costa Rica). Every kit is checked before dispatch, and technical support is available for institutional buyers placing bulk or tender orders.

Frequently Asked Questions

What is Class Set Electricity 2.0 Induction & Alternating Current used for?
It is used to teach electromagnetic induction, alternating current, magnetic fields of coils, generators, transformers, Lenz's law, self-induction and impedance through practical experiments.

How many groups can use this class set?
The kit is designed for 6 learning groups working in parallel during school physics practicals.

Which grade level is this kit suitable for?
The verified source identifies the kit for grade 9 onward, making it suitable for secondary and senior-school physics courses.

Does the kit include transformer coils?
Yes. The confirmed delivery scope includes 6 coils with 1200 turns and 6 coils with 600 turns.

Can students demonstrate Lenz's law with this set?
Yes. Lenz's law is one of the confirmed experiment topics covered by the class set.

Is a power supply included?
The source lists a 0–12 V / 3 A AC/DC power supply as required accessory. Whether it is included in the final supply must be confirmed before order placement.

Are certifications confirmed for this product?
No product-specific certification is confirmed in the verified source data. Tender compliance, safety declarations and certification requirements should be checked before order placement.
