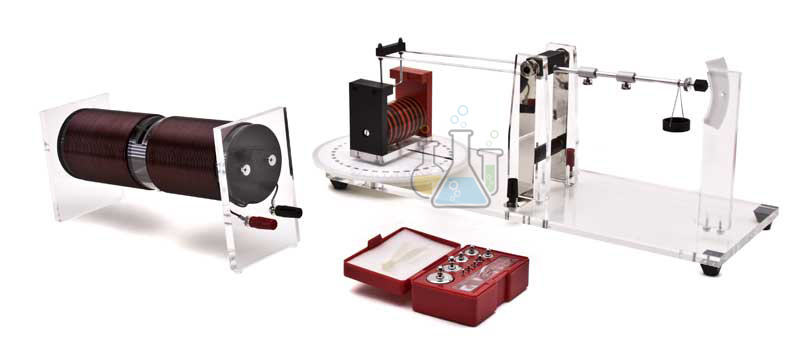

Current Balance Complete Test

Product Code : SCL-EI-10706

This apparatus is used to demonstrate and measure the magnetic force acting on a current-carrying conductor placed in a magnetic field.

Quick Answer: The Current Balance Complete Test Apparatus is a low-voltage, current-limited demonstration set that lets students measure how magnetic force on a conductor varies with current, conductor length, and field strength, connecting Lorentz force and motor-effect theory to a measurable balance reading.

The Current Balance Complete Test from Lab Glassware Manufacturer is designed for practical electricity and magnetism lessons where students need to measure or compare the force on a conductor placed in a magnetic field. It supports demonstrations of Lorentz force, motor effect, field direction, and current-dependent magnetic interaction. This product belongs to the physics lab equipment category and is intended for supervised school, college, and STEM laboratory use.

Key Features

Complete current balance test setup: Supports practical study of magnetic force on a current-carrying conductor.
Useful for Lorentz force demonstrations: Helps connect theory with measurable force observations.
Current-dependent comparison: Allows students to observe how force changes when current is varied.
Magnetic field investigation: Supports experiments involving magnets, conductor loops, and field direction.
Compatible with lab instruments: Can be used with suitable power supplies, meters, and electronic instruments where rated.
Reusable classroom apparatus: Suitable for repeated physics practical sessions when handled correctly.

Specification	Detail
Product Name	Current Balance Complete Test Apparatus
Product Category	Physics Lab Equipment / Electromagnetism Demonstration Apparatus
Intended Users	Schools, colleges, physics teachers, STEM labs, laboratory technicians, educational procurement teams
Main Concepts	Lorentz force, magnetic force, current, conductor length, magnetic field, motor effect
Capacity	Not applicable — complete test apparatus
Included Components	Main current balance apparatus and accessories

What's Included in the Kit

1 × Current balance complete test apparatus main unit
Magnet assembly or magnetic field source
Current-carrying conductor, loop, or wire frame
Connecting leads, terminals, weights, or balance accessories
Instruction sheet or experiment guide

Applications / Uses

Measuring magnetic force on a current-carrying conductor.
Demonstrating Lorentz force and the motor effect.
Studying how force changes with current and conductor length.
Comparing magnetic force readings under different field conditions.
Using with suitable meters, supplies, and general lab equipment.
Supporting electromagnetism experiments in physics and STEM laboratories.

How to Use the Current Balance Complete Test Apparatus

Place the apparatus on a stable, dry laboratory bench.
Check the balance, conductor, magnet assembly, terminals, and leads before use.
Connect the conductor to a suitable low-voltage, current-limited power source.
Position the conductor in the magnetic field according to the experiment guide.
Increase current gradually and observe the balance reading or force change.
Record the readings, switch off the supply, and disconnect the circuit after the test.

Safety note: Do not connect the apparatus directly to mains electricity. Avoid overheating the conductor, use only the confirmed current rating, and wear suitable safety protective wears during broader electrical demonstrations.

Care & Maintenance

Store the apparatus in a dry cabinet after use.
Keep the conductor, terminals, and balance mechanism clean and free from corrosion.
Do not overload the conductor beyond the confirmed current rating.
Replace damaged leads, loose contacts, or deformed conductor frames before reuse.

Current Balance Complete Test Apparatus vs. Current Balance: Confirming Which Fits Your Order

Lab Glassware Manufacturer also lists a separate Current Balance product covering the same core Lorentz-force topic. The supplied catalogue data does not specify exactly how the "Complete Test" apparatus differs from the standard Current Balance listing — for example, whether it adds extra weights, a wider conductor range, or additional measuring accessories. If you are choosing between the two, Both can be paired with the Oersted Rectangular Coil Setup for a broader current-and-magnetism teaching sequence.

Frequently Asked Questions

What is a current balance complete test apparatus used for?
It is used to demonstrate and measure the magnetic force acting on a current-carrying conductor placed in a magnetic field.

What physics concept does this apparatus teach?
It teaches Lorentz force, magnetic force, current-field interaction, conductor length effects, and the motor principle.

Is it suitable for school physics labs?
Yes. It is suitable for supervised school and college physics laboratories when used with compatible low-voltage equipment.

Can students operate the apparatus directly?
Students can use it only under teacher supervision. Current settings, connections, and heating checks should be controlled by trained personnel.
