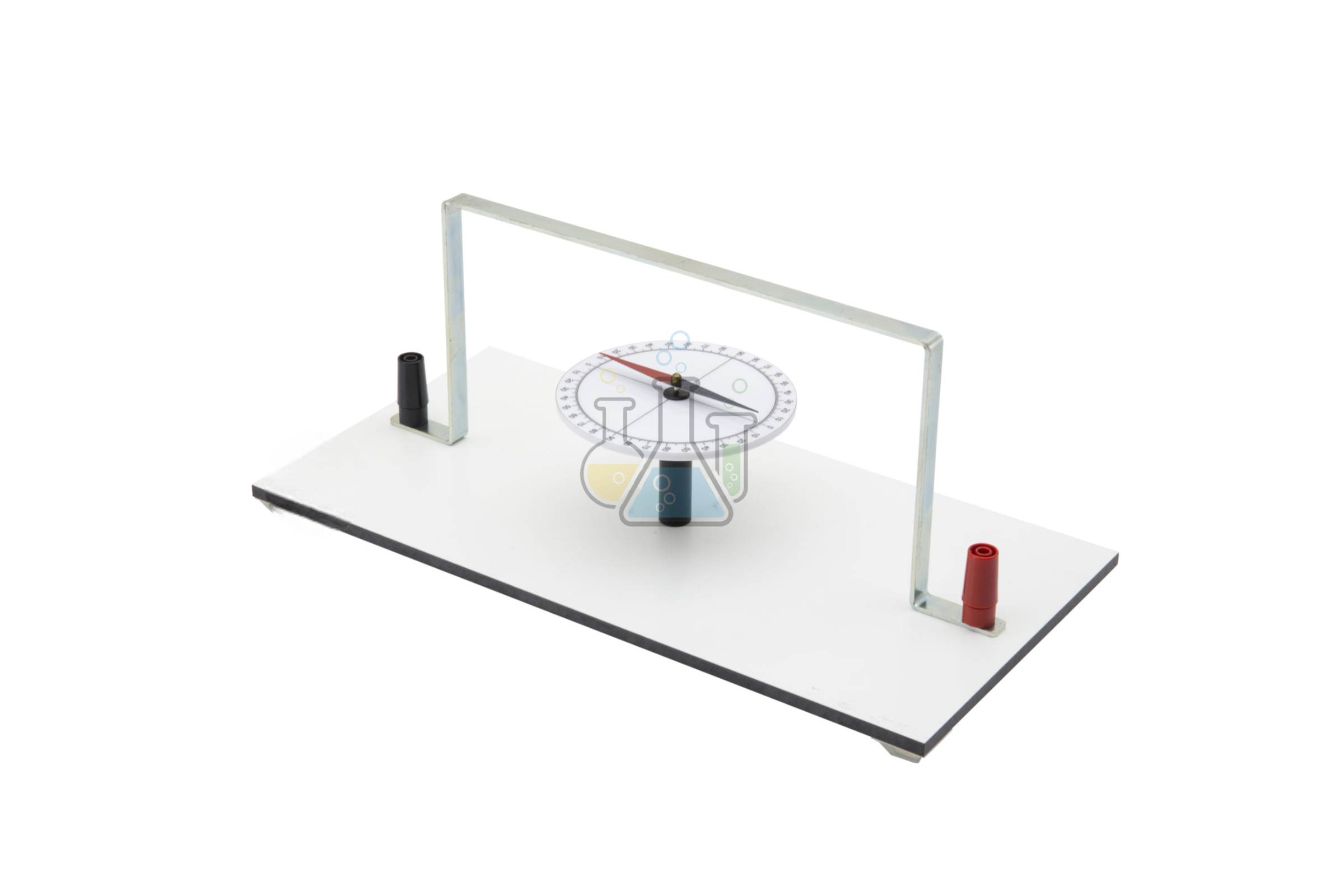

Oersted Rectangular Coil Setup

Product Code : SCL-EI-10662

The Oersted Rectangular Coil Setup from Lab Glassware Manufacturer, a scientific and educational equipment manufacturer based in Ambala, Haryana, India, since 1982, is a physics laboratory electromagnetism apparatus used to demonstrate that an electric current produces a magnetic field around a conductor or coil. It is supplied to schools, colleges, and institutional buyers across India and exported to countries including Jamaica, Trinidad and Tobago, the Bahamas, and Barbados, with growing demand across the wider Caribbean region for hands-on electromagnetism teaching equipment.

Quick answer: The Oersted Rectangular Coil Setup recreates Hans Christian Oersted’s classic experiment, letting students see a nearby magnetic needle or compass deflect when current flows through a rectangular coil, demonstrating the link between electricity and magnetism. The exact coil turns, current rating, and wire material vary by model — check the specific listing before ordering.

Technical Specifications

Specification	Detail
Product Name	Oersted Rectangular Coil Setup
Brand	Lab Glassware Manufacturer
Product Category	Physics Lab Equipment / Electronic Instruments / Electromagnetism Apparatus
Coil Turns / Current Rating / Wire Material	. Rectangular coil format for a clear, structured classroom layout. Electromagnetism teaching aid for lessons on current, magnetic field direction, and the link between electricity and magnetism. Classroom demonstration value so students can observe magnetic needle movement during current flow. Low-voltage practical use for safe educational circuits where voltage and current ratings are confirmed. Specification-dependent safety — current limit, insulation, terminals, and coil heating behaviour are confirmed at order stage. What Is Included Oersted Rectangular Coil Setup with rectangular coil, base, and terminals. A magnetic needle or compass, connecting leads, activity sheet, storage box, or certificate may be included depending on the configuration ordered — confirm exact contents with Lab Glassware Manufacturer before ordering. Applications / Uses Demonstrating the magnetic effect of electric current Showing magnetic needle deflection near a current-carrying coil Explaining the relationship between electricity and magnetism Studying current direction and magnetic field direction Supporting school and college physics practicals on electromagnetism Using in STEM demonstrations, science exhibitions, and electronics trainer lessons How to Use the Oersted Rectangular Coil Setup Place the setup on a stable, dry, non-magnetic laboratory bench. Confirm the voltage rating, current rating, terminal layout, and coil limit before use. Position the magnetic needle or compass near the rectangular coil if supplied or required. Connect the coil to a suitable low-voltage power supply through a switch. Switch on the circuit briefly and observe the needle deflection. Reverse the current direction and compare the change in deflection. Record observations and relate them to the magnetic field produced by current. Switch off the supply before changing connections or handling the coil. Safety note: Use only with safe low-voltage supplies unless the apparatus is specifically rated otherwise. Do not exceed the confirmed current rating, because coils may heat during operation. Keep magnetic needles away from strong magnets and sensitive electronics. Care & Maintenance Store the setup dry and protected from dust, impact, and corrosion. Keep terminals clean and tighten loose connections before classroom use. Do not bend the coil, overload the circuit, or operate the coil continuously beyond its rating. Remove from use if insulation cracks, terminals loosen, or the coil overheats. Part of a Complete Electromagnetism Teaching Sequence The Oersted Rectangular Coil Setup pairs naturally with other magnetism apparatus from Lab Glassware Manufacturer. Combine it with the Small Compasses (4 pcs.) or the Transparent Compass Ø 45 mm to observe needle deflection, and the Magnetic 3D Field Demonstrator to extend the lesson into visualising the shape of the magnetic field itself. Why Choose Lab Glassware Manufacturer Lab Glassware Manufacturer manufactures and exports laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. Its product range supports physics lab equipment, electronic instruments, electronics lab trainers, general lab equipment, and educational laboratory procurement. The brand supplies schools, colleges, universities, research institutions, industrial laboratories, distributors, and export buyers across India and international markets including Jamaica, Trinidad and Tobago, the Bahamas, and Barbados. Frequently Asked Questions What is the Oersted Rectangular Coil Setup used for? The Oersted Rectangular Coil Setup is used to demonstrate that electric current produces a magnetic field that can deflect a nearby magnetic needle or compass. Why is a rectangular coil used? A rectangular coil gives a clear classroom layout for showing the direction and effect of a magnetic field around a current-carrying conductor. Does the setup include a compass or magnetic needle? Compass or magnetic needle inclusion varies by unit — check from the final supplied kit configuration before ordering. What current rating is required? The current rating varies by unit — check the safe current or voltage limit from the product label, datasheet, or supplier before ordering. Can students reverse the current direction? Yes, current reversal can be demonstrated if the circuit is wired safely and the power supply and switch arrangement support it. Is it suitable for school physics labs? Yes. It is suitable for supervised school and college physics practicals on electromagnetism. Related Products Small Compasses (4 pcs.) Transparent Compass Ø 45 mm Magnetic 3D Field Demonstrator Request a Quote For pricing, bulk institutional orders, or tender submissions, please contact Lab Glassware Manufacturer or visit our lab tender page. Last updated: September 2026
