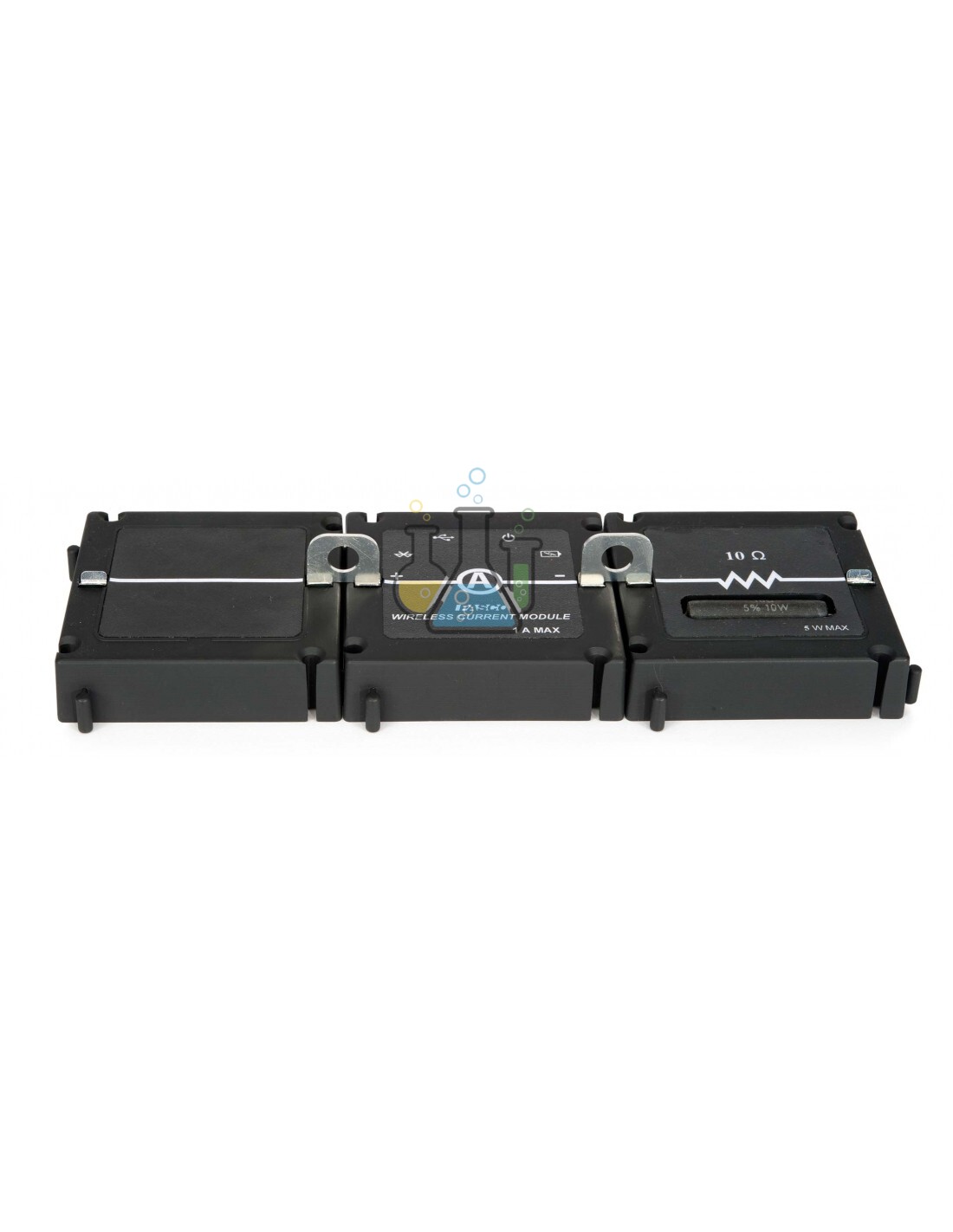

Smart Current Sensor Module

Product Code : SCL-EI-10726

The Smart current sensor module is an electronics teaching and measurement component used for detecting current flow in low-voltage circuits. It is suitable for school physics labs, electronics trainers, STEM kits and sensor-based experiments where students need to observe, measure and compare current safely.

Product Description

The Smart Current Sensor Module helps students study how current changes in a circuit when load, resistance, voltage or wiring conditions are changed. Depending on the supplied design, a current sensor module may use Hall-effect sensing, shunt-based sensing or another approved sensing method to convert current into a readable electrical signal.

This module is useful for practical lessons on Ohm’s law, circuit load, power consumption, motor current, LED circuits and sensor interfacing. It can be used with compatible meters, data loggers, microcontroller trainers or classroom electronics kits when the output type and current range are confirmed. For related teaching apparatus, browse our Electronic Instruments, Physics Lab Equipment and General Lab Equipment categories.

Key Features

• Current measurement support: Detects circuit current for classroom electronics and physics experiments.
• Smart module format: Suitable for compatible trainer boards, sensor kits or data-logging systems.
• Low-voltage teaching use: Helps students study current safely in supervised laboratory circuits.
• Sensor-based learning: Supports experiments on load variation, motor current and circuit response.
• No volumetric capacity: Capacity is not applicable because this is an electronic sensor module.
• STEM compatibility: Useful for microcontroller activities, automation projects and measurement exercises.
• Clear experiment value: Helps connect theoretical current values with observed sensor readings.

Technical Specifications

What's Included in the Kit

• 1 Smart Current Sensor Module
• Connecting leads
• Sensor cable or interface cable
• Instruction sheet or experiment guide

Applications / Uses

• Measuring current in low-voltage school electronics experiments.
• Demonstrating current variation with changing resistance or load.
• Studying motor start current and running current in STEM projects.
• Supporting Ohm’s law, power and energy-consumption demonstrations.
• Using with compatible microcontroller, sensor and data-logging activities.
• Teaching safe circuit measurement in physics and electronics laboratories.

How to Use the Smart Current Sensor Module

1. Check the confirmed current range, voltage rating and output type before use.
2. Connect the module according to the supplied wiring diagram.
3. Place the sensor in series or around the conductor only as specified by the design.
4. Connect the output to the compatible meter, trainer board, data logger or controller.
5. Power the circuit and record the current reading under different load conditions.
6. Switch off the supply before changing wiring or replacing the load.

Safety note: Do not exceed the confirmed current rating. Do not connect the module to mains circuits unless the supplied model is specifically rated and approved for that use.

Care & Maintenance

• Store the module in a dry electronics cabinet after use.
• Keep terminals, connectors and sensor ports clean.
• Do not overload the module or reverse polarity unless the manual allows it.
• Inspect leads, housing and connectors before classroom demonstrations.

Frequently Asked Questions

What is a Smart current sensor module used for?

A Smart current sensor module is used to detect and measure current flow in low-voltage electronics, physics and STEM experiments.

Does the Smart Current Sensor Module have any capacity?

No. Capacity is not applicable because this is an electronic sensor module, not a volumetric laboratory product.

Can students use this module directly?

Yes, students can use it under teacher supervision with compatible low-voltage circuits and correct wiring guidance.

Is it suitable for STEM and microcontroller projects?

Yes, it is suitable when the module output is compatible with the selected STEM kit, microcontroller board or data acquisition system.

Request the Smart Current Sensor Module for school electronics experiments, or browse more items in our complete laboratory product range.

Last updated: September 2026.
