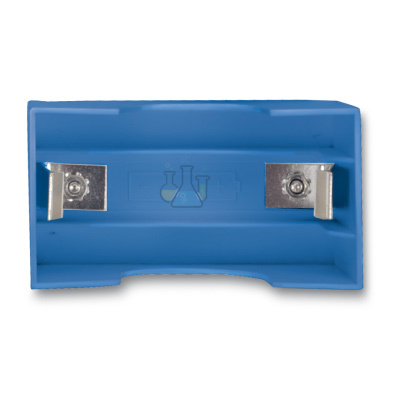

Plug-in Battery Holder Element

Product Code : SCL-EI-10665

The Plug-in Battery Holder Element is a modular electronics teaching accessory designed to supply low-voltage battery power to plug-in circuit boards and trainer panels used in school and college physics and electronics laboratories.

Quick answer: the Plug-in Battery Holder Element is a plug-in format battery holder that connects into a compatible modular circuit board or trainer panel, letting students build and power basic electrical and electronic circuits with standard batteries.

Plug-in Battery Holder Element – Specifications

Key Features

• Plug-in circuit format that connects directly into compatible modular trainer boards
• Functions as a dedicated battery holder for classroom electrical circuits
• Supports educational electronics practicals on basic DC power sources
• Useful for teaching battery polarity and correct circuit connection
• Reusable component suited to repeated classroom demonstrations
• Safe operation depends on using the confirmed, correct battery type

What Is Included

Depending on the configuration ordered, the package may include the plug-in battery holder element, batteries, labels, a plug base, connecting contacts, an instruction sheet, and a storage box or certificate. Confirm the exact contents with Lab Glassware Manufacturer before ordering.

Applications and Uses

• Teaching basic circuit-building skills in school and college physics and electronics laboratories
• Demonstrating battery polarity and series or parallel battery arrangements
• Powering low-voltage loads such as lamps, LEDs, resistors, motors, or buzzers in modular circuit-board experiments
• Supporting hands-on practicals on batteries as a direct current power source
• Use within physics and electronics demonstration and workshop kits
• Reusable power component for repeated classroom experiments

How to Use

1. Confirm the battery type and voltage rating for this specific holder before use.
2. Insert the correct batteries into the holder, matching the polarity markings.
3. Plug the battery holder element into the compatible plug-in circuit board or trainer panel.
4. Connect the circuit load, such as a lamp, LED, resistor, motor, or buzzer.
5. Close the circuit using a switch and observe the powered component.
6. Switch off or disconnect the circuit before changing any components.
7. Avoid reversing polarity or mixing old and new batteries.
8. Remove the batteries before long-term storage.

Safety note: use only with the confirmed battery type and low-voltage classroom circuits. Do not short-circuit the battery contacts, mix old and new cells, reverse polarity, use leaking batteries, or connect the holder to mains electricity.

Care and Maintenance

• Store in a dry place away from heat, moisture, and chemical vapours
• Remove batteries after each use
• Keep battery contacts clean
• Discontinue use if contacts corrode, plug pins loosen, the housing cracks, or batteries overheat

Plug-in Battery Holder vs Other Plug-in Circuit Elements

The Plug-in Battery Holder Element is the power source in a modular circuit-building set: it supplies low-voltage DC current once inserted into a plug-in board for building components. It is typically combined with control elements such as the push-button plug element or the plug-in element lever switch, which open and close the circuit the battery holder powers. Ordering the battery holder alongside the board and one or more switch elements gives students a complete, reusable set for building and testing basic circuits.

Frequently Asked Questions

What battery size does it use?
The battery size is not confirmed. Add AA, AAA, C, D, 4.5V flat battery, or other battery details only after checking the final product specification.

Does it include batteries?
Battery inclusion is not confirmed. Batteries should be listed only if they are supplied with the final kit configuration.

Can it be used with plug-in circuit boards?
Yes, it can be used with a plug-in circuit board if the plug standard, spacing, and voltage match the trainer system.

What voltage output does it provide?
The output voltage is not confirmed. It depends on the number and type of cells used in the holder.

Is it suitable for school electronics labs?
Yes. It is suitable for supervised school and college electronics practicals when used with safe low-voltage circuits and correct polarity.
