Airflow Generator

Product Code : SCL-EI-10590

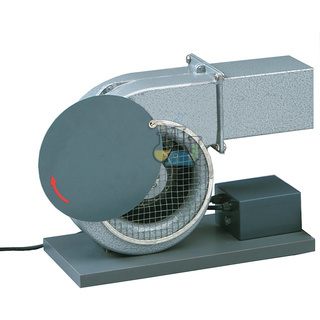

Quick answer: The Airflow Generator 220 V is a bench-top apparatus that produces a directed, low-turbulence air stream (approx. 14 m/s, through a 90 x 90mm outlet) for classroom experiments on lift, drag, pressure difference and flow behaviour. It runs on 230V AC at 65W and is commonly paired with wing profiles, propellers and flight/flying experiment sets.

Key Features

• Produces directed, low-turbulence airflow for aerodynamics experiments
• Maximum air-flow speed of approximately 14 m/s
• 90 x 90mm outlet opening supports model and wing-profile demonstrations
• Radial blower in metal housing supports durable classroom use
• Long flow straightener helps produce a more uniform air stream
• Usable in horizontal and vertical operating positions
• Intake cover disc allows wind-speed regulation during experiments

What's Included

• Airflow generator unit, 220V
• Radial blower in metal housing
• Suction opening with intake cover disc
• Long flow straightener
• Base plate with switch
• Mains connection cord
• Operating instructions

Applications / Uses

• Creating airflow for school aerodynamics experiments
• Demonstrating dynamic lift on wing profiles
• Comparing drag on different shapes and bodies
• Studying airflow around propellers, rotors and model aircraft parts
• Supporting Bernoulli principle and pressure-difference demonstrations
• Testing flight and flying experiment accessories
• Providing controlled wind input for mechanics and STEM investigations

How to Use the Airflow Generator 220 V

• Place the airflow generator on a stable, dry laboratory bench
• Position the model, wing profile or drag body in front of the 90 x 90mm outlet
• Check that the intake and outlet are clear before switching on the unit
• Connect the mains cord to a suitable 230V AC supply
• Switch on the generator and regulate the airflow using the intake cover disc
• Observe lift, drag, airflow path, pressure effect or model movement
• Switch off the unit before changing models or repositioning accessories

Safety note: Use the unit under teacher supervision. Keep fingers, loose clothing, paper and small objects away from the intake and outlet. Disconnect from mains power before cleaning or adjustment.

Care & Maintenance

• Keep the intake opening, outlet and flow straightener free from dust
• Check the mains cord, switch and housing before each practical session
• Store the unit in a dry area away from water and chemical vapours
• Do not block the suction opening or operate the blower with loose parts nearby

Pairing with Flight and Aerodynamics Experiments

The Airflow Generator 220 V is designed to work alongside dedicated aerodynamics teaching sets. It provides the controlled wind source needed for the Experiment Kit Flight/Flying, allowing students to test lift, drag and recoil principles with a repeatable air stream rather than relying on unpredictable manual airflow.

Frequently Asked Questions

What is the Airflow Generator 220 V used for?
The Airflow Generator 220 V is used to create a controlled air stream for aerodynamics experiments on lift, drag, pressure differences, airflow and flight principles.

What is the maximum airflow speed?
The verified specification lists a maximum flow speed of approximately 14 m/s.

What is the outlet size of the airflow generator?
The verified air outlet opening is 90 x 90mm, with the outlet centre positioned 230mm above the base level.

Can this unit be used with a Flight and Flying Experiment Kit?
Yes. It is suitable as an airflow source for flight, flying and aerodynamics demonstrations that require controlled wind flow.

What voltage does the unit require?
The verified operating voltage is 230V AC, with a listed power consumption of 65W.

Related Products

• Experiment Kit Flight/Flying
• Physics Lab Equipment
• Electronic Instruments

Request a Quote

For aerodynamics experiments, flight physics demonstrations and school laboratory procurement, request a quotation through our Contact Us page, or submit institutional and tender requirements via our Tenders page.

Last updated: September 2026
