Bridge Plug 19mm Manufacturer,Supplier and Exporter in India

Product Code : SCL-EI-10731

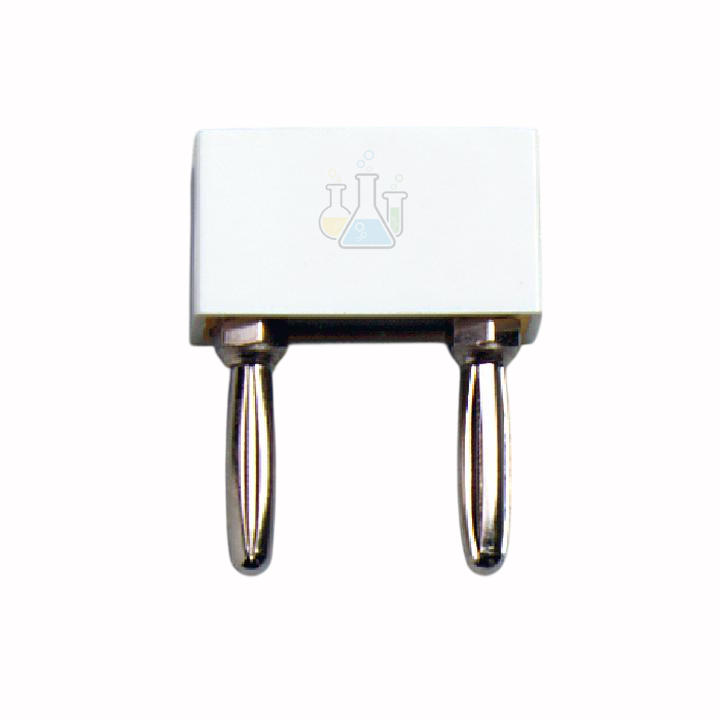

The Bridge Plug 19mm is a plug-in circuit bridge connector used for making short, temporary electrical links on compatible school circuit boards. It is designed for physics labs, electronics trainers, STEM classrooms and student electricity experiments where learners need a quick bridge connection without soldering.

Product Description

The Bridge Plug 19mm is used to connect two nearby points on a compatible plug-in board or modular circuit system. It functions as a jumper bridge, allowing students to complete a circuit path, bypass a section, test continuity or create a temporary connection during low-voltage experiments.

This bridge plug is useful for classroom demonstrations involving current flow, open circuits, closed circuits, switches, lamps, resistors and circuit layout changes. It is suitable for use with related products from the Electronic Instruments category and compatible Plug-in board for building components.

Key Features

• 19mm bridge format: Designed for short-point connection on compatible plug-in circuit boards.
• No soldering required: Allows temporary electrical links during practical student experiments.
• Low-voltage teaching use: Suitable for supervised school physics and electronics laboratory work.
• Reusable component: Can be inserted, removed and repositioned across repeated circuit activities.
• Simple continuity demonstration: Helps students understand circuit paths and closed-loop behaviour.
• Compact circuit accessory: Useful with switches, lamps, resistors, LEDs, meters and test leads.
• Capacity defined by span: Capacity is not volumetric; the working bridge span is 19mm.

Technical Specifications

What's Included in the Kit

• 1 Bridge Plug 19mm
• Protective packing for storage and dispatch
• Instruction sheet, if supplied
• Plug-in board or additional accessories, if supplied

Applications / Uses

• Connecting two points on compatible modular circuit boards.
• Demonstrating open circuits, closed circuits and current paths.
• Using with student electricity boards and basic electronics trainers.
• Creating temporary jumper links during STEM experiments.
• Pairing with Test Leads 4mm Set of Ten for classroom circuit work.
• Supporting circuit activities with switches such as the Single-Pole Lever Switch.

How to Use the Bridge Plug 19mm

1. Confirm that the 19mm bridge plug matches the spacing and socket format of the circuit board.
2. Place the board on a dry, stable and non-conductive work surface.
3. Switch off the power supply before inserting the bridge plug.
4. Insert one pin of the bridge plug into the first connection point.
5. Insert the second pin into the required nearby connection point to complete the circuit path.
6. Apply the approved low-voltage supply and observe the circuit response.
7. Switch off the supply before removing or repositioning the bridge plug.

Safety note: Use the Bridge Plug 19mm only with compatible low-voltage educational circuits. Do not use it with mains electricity, damaged sockets or overloaded circuits.

Care & Maintenance

• Store bridge plugs in a labelled component box after practical sessions.
• Keep metal contacts clean, dry and free from corrosion.
• Do not bend, force or overload the plug pins.
• Replace any bridge plug with loose contacts, cracked insulation or visible damage.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies laboratory glassware, scientific instruments, physics apparatus, electronic teaching aids, STEM kits and didactic models for educational institutions and laboratory buyers. The company supports schools, colleges, universities, distributors and export customers with classroom-ready science equipment. Buyers can also source related circuit accessories such as Ten Plug-In Bridges for larger laboratory setups.

Frequently Asked Questions

What is a Bridge Plug 19mm used for?

A Bridge Plug 19mm is used to connect two points on a compatible plug-in circuit board. It creates a short temporary electrical path during low-voltage circuit experiments.

Is the Bridge Plug 19mm suitable for school physics labs?

Yes. It is suitable for supervised school physics and electronics labs when used with compatible low-voltage teaching boards.

Does the Bridge Plug 19mm need soldering?

No. The bridge plug is designed as a plug-in connector, so it can be inserted and removed without soldering.

What does the 19mm size mean?

The 19mm size refers to the bridge span or spacing between the connection points. The compatible board socket spacing should be confirmed before ordering.

Can it be used with lamps, switches and resistors?

Yes. It can be used in compatible circuits containing lamps, switches, resistors, LEDs, meters and other low-voltage teaching components.

What should be confirmed before purchase?

Confirm the connector spacing, pin type, compatible board format, electrical rating, material and required quantity before purchase.

Request the Bridge Plug 19mm for school circuit experiments, or browse more modular circuit accessories in our Electronic Instruments category.
