SEG Electrical Extension Induction and Alternating Voltage

Product Code : SCL-EI-10599

Lab Glassware Manufacturer, based in Ambala, Haryana, India, has been manufacturing and exporting laboratory, scientific and educational equipment since 1982. The SEG Electrical Extension Induction and Alternating Voltage kit is supplied to secondary physics labs and export buyers across Central Europe, including Poland, Czechia, Slovakia and Hungary, for advanced electromagnetism teaching.

Quick answer: This SEG extension set adds 600-turn and 1200-turn coils, a U-core with I-core, a 4700µF electrolytic capacitor, a short-circuit ring, bar magnet and glow lamp to a base SEG Electricity set, letting students investigate electromagnetic induction, magnetic-core effects and alternating-voltage behaviour. It is not a standalone kit — it extends the SEG Electricity Basic or SEG Electrical Complete Set and can be stored in that set's own tray.

Key Features

• Extension set for induction and alternating-voltage experiments
• Supports advanced student work in electromagnetism and electromagnetic induction
• Includes 600-turn and 1200-turn coils for coil and transformer-style demonstrations
• U-core with I-core supports magnetic-flux and core-effect experiments
• 4700µF electrolytic capacitor enables switching and transient-effect activities
• Short-circuit ring, bar magnet and glow lamp support clear qualitative demonstrations
• Can be stored in the tray of the SEG Electricity Basic student set

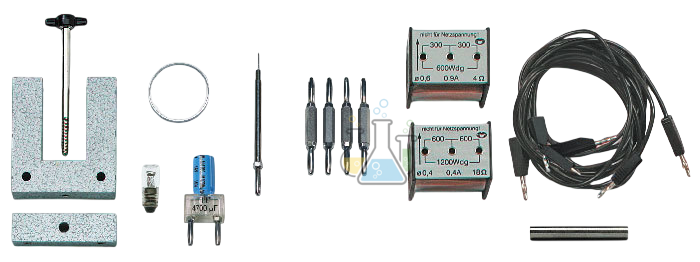

What's Included in the Kit

• U-core with I-core
• 1 coil, 1200 turns
• 1 coil, 600 turns
• Connecting plug
• Cables
• 4700µF electrolytic capacitor
• Bar magnet
• Needle bearing
• Short-circuit ring
• Glow lamp
• Experiment documentation / instructions

Applications / Uses

• Demonstrating electromagnetic induction in coils
• Showing how a magnetic core affects coil behaviour
• Introducing transformer-style experiments using 600-turn and 1200-turn coils
• Studying alternating voltage and induced electrical effects
• Observing magnetic-field and current-related demonstrations with a short-circuit ring
• Using a glow lamp as a visible indicator in induction activities
• Extending basic electricity lessons into electromagnetism and AC concepts

How to Use the SEG Electrical Extension Induction and Alternating Voltage

• Prepare the SEG Electricity Basic or SEG Electrical Complete Set on a dry laboratory bench
• Select the induction or alternating-voltage experiment from the instruction material
• Install the U-core, I-core and required coil arrangement as shown in the setup diagram
• Connect the cables, plug, capacitor, glow lamp or short-circuit ring as required
• Use only the approved low-voltage supply and teacher-approved circuit arrangement
• Observe induced effects, lamp response, magnetic interaction or coil behaviour
• Disconnect the power before changing coils, core position or wiring

Safety note: Use the kit under teacher supervision. Avoid short circuits, observe capacitor polarity where applicable, and discharge capacitors safely before handling circuit connections.

Care & Maintenance

• Store coils, cores and small electrical parts in their assigned tray positions
• Keep the U-core, I-core and bar magnet dry and free from corrosion
• Inspect cables, plugs and the glow lamp before each practical session
• Do not bend coil terminals or force parts into the storage tray

Required Base Set and Related Apparatus

This extension kit requires a base electricity set to operate. It is designed for use with the SEG Electrical Complete Set, and extends the same induction and alternating-current topics covered in the Class Set Electricity 2.0 Induction and Alternating Current Kit. The Coil with 400 Turns is available separately for schools needing an additional coil specification for comparison experiments.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies laboratory glassware, physics apparatus, electricity experiment kits, electronic instruments and STEM teaching equipment for institutional procurement. The brand supports schools, colleges, laboratories and export buyers with practical product sourcing for classroom science teaching. Buyers can combine this extension kit with General Lab Equipment, Safety Protective Wears and our Tenders page for complete laboratory planning.

Frequently Asked Questions

What is the SEG Electrical Extension Induction and Alternating Voltage kit used for?
It is used to extend basic electricity lessons into electromagnetic induction, coil behaviour, magnetic-core effects and alternating-voltage demonstrations.

Does this set include coils?
Yes. The verified supply scope includes one 1200-turn coil and one 600-turn coil.

Is this a standalone kit?
No. The verified source lists the SEG Electrical Complete Set as required accessory, so the final classroom setup should be planned with the base SEG electricity set.

Does the kit include a magnetic core?
Yes. The supply scope includes a U-core with I-core for coil and induction experiments.

Can this kit be stored with the basic SEG electricity set?
Yes. The verified source states that the extension set can be stored in the tray of the SEG Electricity Basic student set.

Are certifications confirmed for this product?
No product-specific certification is confirmed in the verified source data. Tender compliance, electrical safety documentation and material details should be checked before procurement.
