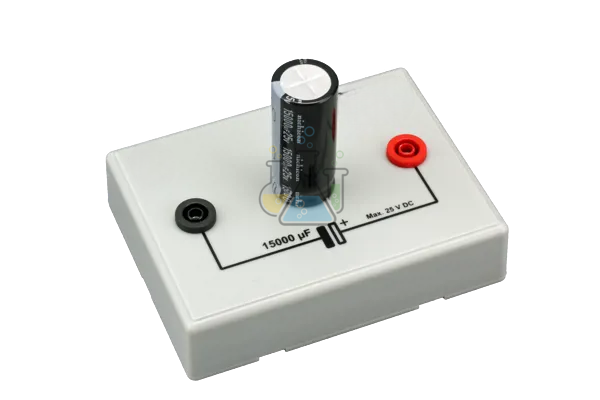

Capacitor Based
 (1).png)
Product Code : SCL-EI-10627
The Capacitor Based Circuit Element from Lab Glassware Manufacturer, a scientific and educational equipment manufacturer based in Ambala, Haryana, India, since 1982, is an educational electronics component used for demonstrating capacitance, charge storage, discharge, and time-delay behaviour in school physics circuits. It is supplied to schools, colleges, and institutional buyers across India and exported to countries including Jordan, Lebanon, Israel, and the Palestinian territories as part of the company's Levant region science-education supply.
Quick answer: The Capacitor Based Circuit Element lets students see how a capacitor stores electrical charge and releases it back into a circuit, using an LED, resistor, or meter to make charging and discharging behaviour visible. It should be connected with correct polarity where applicable and used only within its confirmed voltage rating.
| Specification | Detail |
|---|---|
| Product Name | Capacitor Based Circuit Element |
| Brand | Lab Glassware Manufacturer |
| Product Category | Physics Lab Equipment / Electronic Instruments |
| Component Type | Capacitor module / capacitance circuit element |
| What’s Included | 1 Capacitor Based Circuit Element with protective packing; resistor, LEDs, or power source only if specified |
| Capacitance Value, Voltage Rating, Polarity | Varies by model — see product specifications |
Key Features
- Capacitor-based module for school electricity and electronics experiments.
- Useful for teaching capacitance, charge storage, discharge, and circuit timing.
- Can be used with LEDs, resistors, switches, meters, and demonstration boards.
- Supports visual experiments where an LED fades or responds after charging.
- Suitable for physics labs, electronics labs, STEM kits, and project-based learning.
- Modular format supports quick classroom setup on compatible circuit boards.
- Designed for supervised educational use with correctly rated low-voltage circuits.
Applications / Uses
- Demonstrating capacitor charging and discharging in basic circuits.
- Teaching capacitance and electrical charge storage in school physics.
- Showing time-delay effects with LEDs, resistors, and switches.
- Introducing RC circuit behaviour in practical electronics lessons.
- Using with meters to observe changing voltage during charge and discharge.
How to Use the Capacitor Based Circuit Element
- Check the confirmed capacitance value and voltage rating before connecting the module.
- Insert or connect the capacitor element into the compatible teaching board or circuit setup.
- Connect a resistor in series where the experiment or capacitor type requires current limiting.
- Apply the recommended low-voltage supply and observe the charging behaviour.
- Disconnect the supply and observe discharge through a connected LED, resistor, or meter.
- Discharge the capacitor safely before touching terminals or changing the circuit.
Safety note: Do not exceed the confirmed voltage rating. Electrolytic capacitors may be polarity-sensitive and can fail if connected incorrectly or over-volted.
Care & Maintenance
- Store the capacitor element in a dry, labelled component box after use.
- Keep terminals clean and free from dust, moisture, and corrosion.
- Discharge the capacitor before storage or inspection.
- Replace the unit if the capacitor is swollen, leaking, cracked, loose, or electrically unreliable.
Building a Complete Plug-in Timing Circuit
The Capacitor Based Circuit Element pairs naturally with other plug-in circuit modules. Combine it with a Plug-In LED Red Top to make the charge/discharge cycle visible, add Resistors for Breadboard for current limiting and RC timing, and mount everything on the Plug-in Board for Building Components to build a complete classroom RC timing demonstration.
Why Choose Lab Glassware Manufacturer
Lab Glassware Manufacturer supplies educational laboratory products for schools, colleges, universities, science laboratories, and institutional procurement projects from Ambala, Haryana, India, since 1982. The company supports laboratory glassware, scientific lab products, physics apparatus, electronic teaching aids, and STEM classroom equipment, exporting to the Levant region including Jordan, Lebanon, Israel, and the Palestinian territories. Buyers can source the Capacitor Based Circuit Element for school tenders, circuit kits, physics labs, electronics demonstrations, and export-oriented educational supply requirements.
Frequently Asked Questions
What is a Capacitor Based Circuit Element used for?
A Capacitor Based Circuit Element is used to demonstrate charge storage, charging, discharging, and timing effects in school physics and electronics circuits.
Is this capacitor module suitable for school students?
Yes. It is suitable for supervised school and STEM experiments when used with the correct low-voltage supply and compatible circuit board.
What value is the capacitor?
The capacitance value must match your experiment requirement and circuit design; check the specific listing before ordering.
Does capacitor polarity matter?
Polarity matters if the capacitor is polarised, such as many electrolytic capacitors. The polarity type should be confirmed and clearly marked on the final product.
Can it be used with an LED and resistor?
Yes. It can be used with a compatible LED and resistor to show charging, discharging, and delay effects in a simple classroom circuit.
What details should be confirmed before purchase?
Confirm capacitance value, voltage rating, capacitor type, polarity, connector style, compatible board type, quantity, and whether accessories are included.
Related Products
Request a Quote
For pricing, bulk school and institutional orders, or tender submissions for the Capacitor Based Circuit Element, please contact us or visit our lab tender page.
