Resistance Based

Product Code : SCL-EI-10628

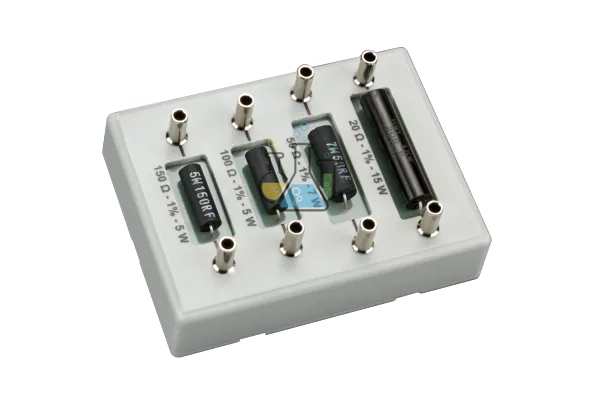

The Resistance Based Circuit Element from Lab Glassware Manufacturer is an educational resistor module engineered for demonstrating electrical resistance, current control, voltage drop, and Ohm’s law in school physics and electronics laboratories.

Quick answer: The Resistance Based Circuit Element is a plug-in resistor module used with cells, LEDs, lamps, switches, meters, and compatible circuit boards to teach how resistance limits current and controls voltage drop in a circuit — suited to supervised school, college, and STEM electronics practicals.

Key Features

• Resistance-based module for school electricity and electronics experiments.
• Useful for teaching Ohm’s law, current control, voltage drop, and circuit behaviour.
• Can be used with LEDs, lamps, switches, meters, cells, and plug-in circuit boards.
• Supports practical comparison of different resistance values when used in sets.
• Helps students observe how resistance affects brightness, current, and meter readings.
• Suitable for physics labs, electronics labs, STEM kits, and project-based learning.
• Designed for supervised educational use with correctly rated low-voltage circuits.

What’s Included

• 1 x Resistance Based Circuit Element
• Protective packing for safe storage and dispatch
• Optional plug-in board, connecting leads, LEDs, switches, cells, or meters — only if specified in the order

Applications / Uses

• Demonstrating Ohm’s law in school physics laboratories.
• Showing how resistance controls current in a simple circuit.
• Observing voltage drop across a resistor using a meter.
• Using LEDs, bulbs, buzzers, and meters in safe low-voltage experiments.
• Building STEM circuit models and classroom electronics activities.
• Pairing with General Lab Equipment circuit accessories for practical demonstrations.

How to Use the Resistance Based Circuit Element

1. Check the confirmed resistance value and power rating before connecting the component.
2. Insert or connect the resistor element into the compatible circuit board or teaching setup.
3. Connect the power source, switch, and load as per the circuit diagram.
4. Measure current or voltage using a compatible meter if required by the experiment.
5. Compare results with different resistance values if multiple modules are available.
6. Disconnect the power supply before removing or changing the circuit element.

Safety note: Do not exceed the confirmed power rating. A resistor can heat up if overloaded, incorrectly connected, or used with an unsuitable power source.

Care & Maintenance

• Store the resistance element in a dry, labelled component box after use.
• Keep terminals clean, dry, and free from corrosion.
• Do not use the component if the resistor body is burnt, cracked, or loose.
• Allow the component to cool before handling if it has been used in a loaded circuit.

Building a Complete Plug-In Circuit Set

The Resistance Based Circuit Element is designed to work alongside other plug-in teaching modules from Lab Glassware Manufacturer. Pair it with the Plug-In Board for Building Components to mount a complete circuit, add a Capacitor Based Circuit Element to teach RC circuit behaviour and charge/discharge timing, or connect a Plug-In LED Red Top as a visual output load for resistance-vs-brightness experiments. Used together, these modules let students build progressively more complex classroom circuits from a common plug-in component family.

Frequently Asked Questions

What is a Resistance Based Circuit Element used for?
A Resistance Based Circuit Element is used to demonstrate electrical resistance, current control, voltage drop, and Ohm’s law in school physics and electronics circuits.

Is this resistor module suitable for school students?
Yes. It is suitable for supervised school and STEM experiments when used with correctly rated low-voltage circuits and compatible teaching boards.

What resistance value does it have?
The final value must match the required experiment or circuit design.

Can it be used with LEDs and bulbs?
Yes. It can be used with compatible LEDs, bulbs, buzzers, and meters to show how resistance affects current and output behaviour, and pairs well with the Plug-In LED Red Top for this purpose.

Why does the power rating matter?
The power rating tells how much electrical power the resistor can safely handle. Exceeding the rating can cause overheating or component failure.
