Graetz Bridge Rectifier Board Manufacturer,Supplier and Exporter in India
 (1).png)
Product Code : SCL-EI-10667

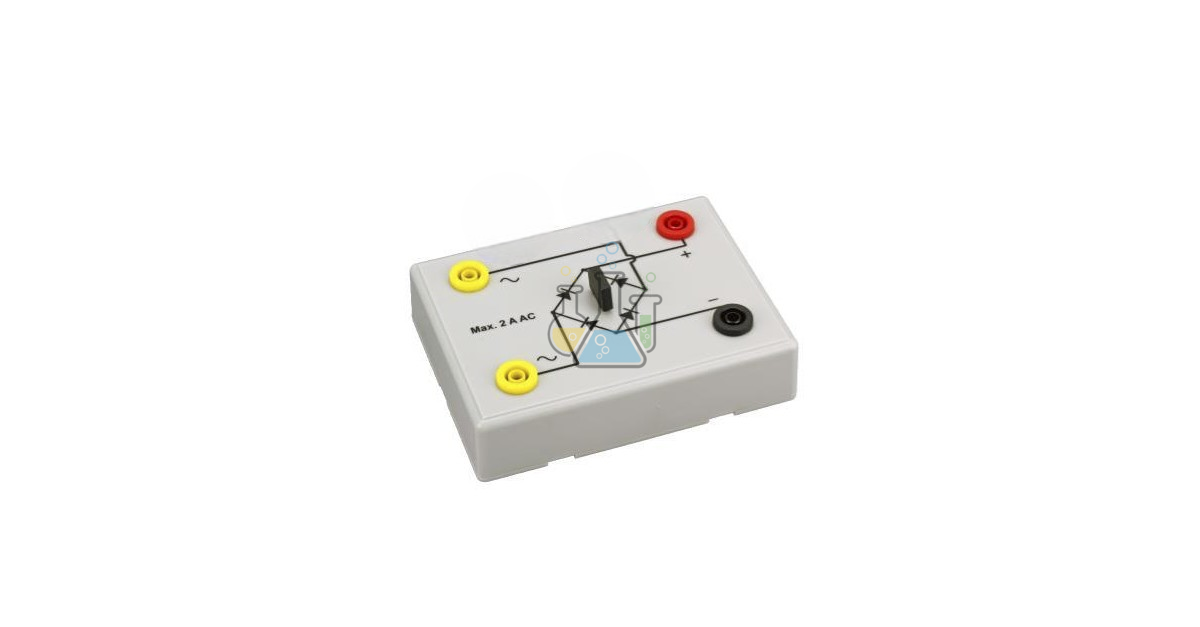

The Graetz Bridge Rectifier Board is an electronics laboratory apparatus used for demonstrating full-wave rectification and AC-to-DC conversion in school physics and electronics experiments. It is suitable for schools, colleges, STEM labs, electronics trainer boards, practical classrooms, distributors, and educational laboratory procurement buyers.
Product Description
The Graetz Bridge based on product from Lab Glassware Manufacturer is best described as a Graetz bridge rectifier board or base for low-voltage educational circuit demonstrations. A Graetz bridge is a bridge-rectifier circuit used to convert alternating current into pulsating direct current.
This apparatus helps students observe diode conduction, full-wave rectification, polarity, ripple, and the difference between AC input and DC output. It can be used with low-voltage AC supplies, meters, lamps, LEDs, resistors, capacitors, and oscilloscope demonstrations where all ratings are verified.
Key Features
- Full-wave rectification: demonstrates AC-to-DC conversion using the Graetz bridge principle.
- Educational circuit format: suitable for school physics, electronics, and STEM practicals.
- Bridge rectifier learning: helps students understand diode direction, output polarity, and ripple voltage.
- Board/base design: intended for bench-top or trainer-board use where final fitment is confirmed.
- Capacity not applicable: this is an electronic circuit apparatus, not a liquid-volume product.
- Low-voltage experiment use: suitable only within the confirmed AC input and DC output ratings.
- Specification-dependent safety: diode rating, terminal type, insulation, and load limits must be verified.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
Graetz Bridge based on |
|
Primary Keyword |
Graetz Bridge Rectifier Board |
|
Secondary / Semantic Keywords |
Graetz bridge board, bridge rectifier board, full-wave rectifier apparatus, AC to DC converter circuit, school electronics rectifier, diode bridge experiment, physics rectification apparatus, electronics trainer rectifier module |
|
Brand |
Lab Glassware Manufacturer |
|
Product Category |
Physics Lab Equipment / Electronic Instruments / Rectifier Circuit Apparatus |
|
Intended Users |
Schools, colleges, universities, STEM labs, electronics trainers, physics teachers, distributors, and educational laboratory procurement buyers |
|
Capacity |
Not applicable |
|
Circuit Type |
Graetz bridge / full-wave bridge rectifier |
What's Included in the Kit
- Graetz Bridge Rectifier Board / Base
- Diodes, terminals, smoothing capacitor, load resistor, connecting leads, activity sheet, storage box, or certificate
Applications / Uses
- Demonstrating full-wave bridge rectification
- Converting low-voltage AC into pulsating DC for classroom observation
- Studying diode conduction and output polarity
- Comparing AC waveform and rectified output with meters or oscilloscopes
- Using with capacitors to demonstrate smoothing where supplied
- Supporting school physics, STEM, and electronics trainer experiments
How to Use the Graetz Bridge Rectifier Board
- Confirm the AC input rating, diode rating, terminal layout, and circuit diagram before use.
- Place the board on a dry, stable laboratory bench.
- Connect a suitable low-voltage AC supply to the marked AC input terminals.
- Connect a meter, lamp, resistor, or approved load to the DC output terminals.
- Switch on the supply and observe the rectified DC output.
- Compare readings before and after adding a smoothing capacitor if the kit includes one.
- Switch off the supply before changing connections or touching the board.
Safety note: Use only with safe low-voltage supplies unless the product is specifically rated otherwise. Do not connect the board directly to mains electricity, exceed diode ratings, short the output, or reverse connections without checking the circuit diagram.
Care & Maintenance
- Store the board dry and protected from dust, heat, and impact.
- Keep terminals clean and secure for repeatable circuit readings.
- Do not overload the bridge rectifier or operate with unknown supply ratings.
- Remove from use if components overheat, terminals loosen, or insulation is damaged.
Why Choose Lab Glassware Manufacturer
Lab Glassware Manufacturer manufactures and exports laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. Its product range supports physics lab equipment, electronic instruments, electronics lab trainers, general lab equipment, and educational laboratory procurement. The brand supplies schools, colleges, universities, research institutions, industrial laboratories, distributors, and export buyers.
Frequently Asked Questions
What is a Graetz Bridge Rectifier Board used for?
A Graetz Bridge Rectifier Board is used to demonstrate full-wave rectification and AC-to-DC conversion in electronics and physics experiments.
What is a Graetz bridge?
A Graetz bridge is a bridge-rectifier circuit that converts alternating current into pulsating direct current using diode rectification.
Does it include four diodes?
The diode configuration is not confirmed. List four discrete diodes or an integrated bridge only after checking the final product.
What input voltage can it handle?
The AC input rating is not confirmed. Add voltage and current ratings only after checking the product label or datasheet.
Can it be used with an oscilloscope?
Yes. It can be used with an oscilloscope for waveform observation when the voltage range and grounding method are suitable.
Is it suitable for school electronics labs?
Yes. It is suitable for supervised school and college electronics practicals when used with safe low-voltage supplies and correct circuit connections.
For related teaching and laboratory products, explore electronic instruments, physics lab equipment, general lab equipment, and contact Lab Glassware Manufacturer.
